This is the final step in the Silverado Conversion. NFPA 52 Section 6.11 requires some stickers to be applied. So I pulled out Adobe Photo Deluxe and created the two I needed. Each line is defined and needed on the stickers.
|
Using sticky back vinyl laser paper I printed them out.
|
This is the actual art work for the CNG fill sticker.
|

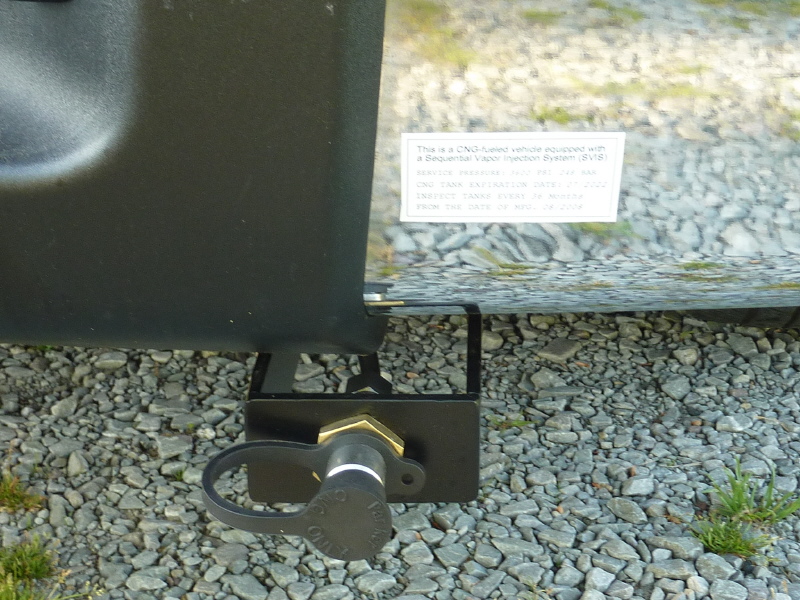

This is the placement of the fill sticker.
|
This is the actual art work for the under hood sticker.
|

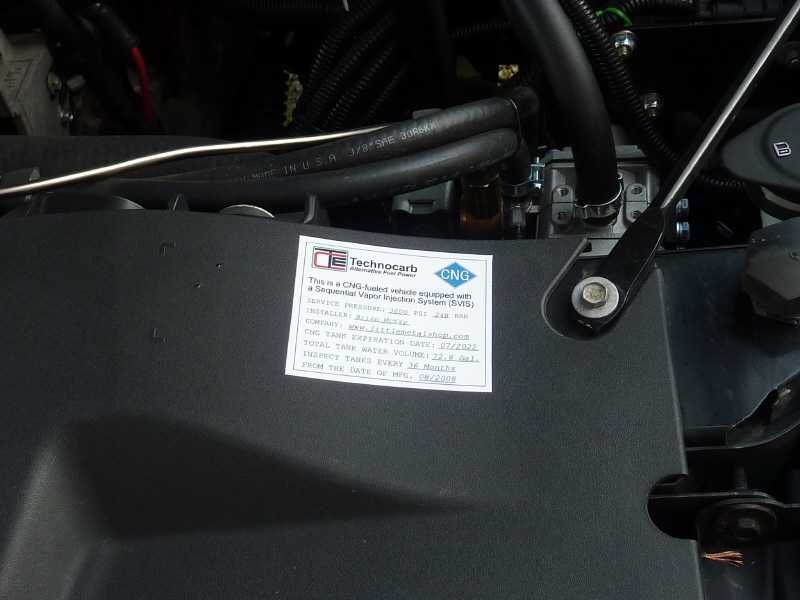

This is the location for the under hood sticker. |

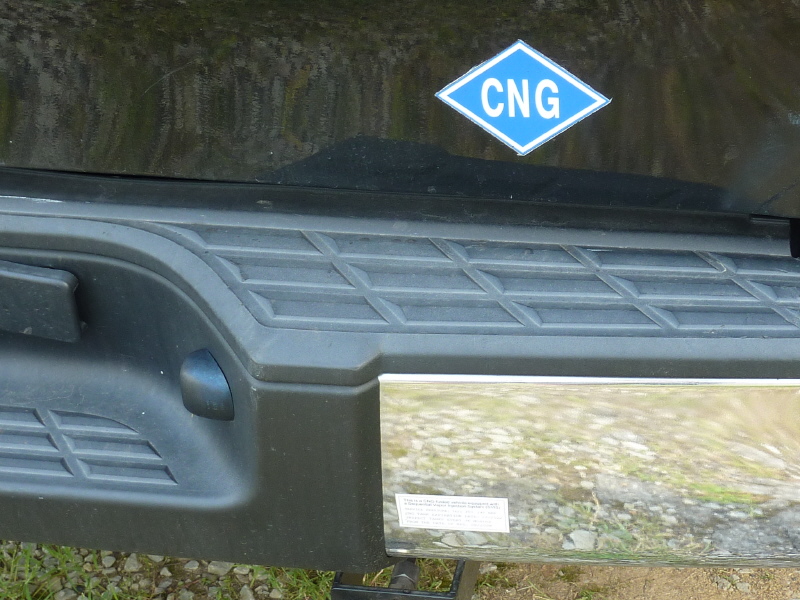

. . . . . . and last but least the standard diamond CNG sticker. I purchased a few off Ebay for $1.89 each.
|
Once all the stickers are applied, the job is complete. It was fun doing the conversion and am already anticipating my next project. |
