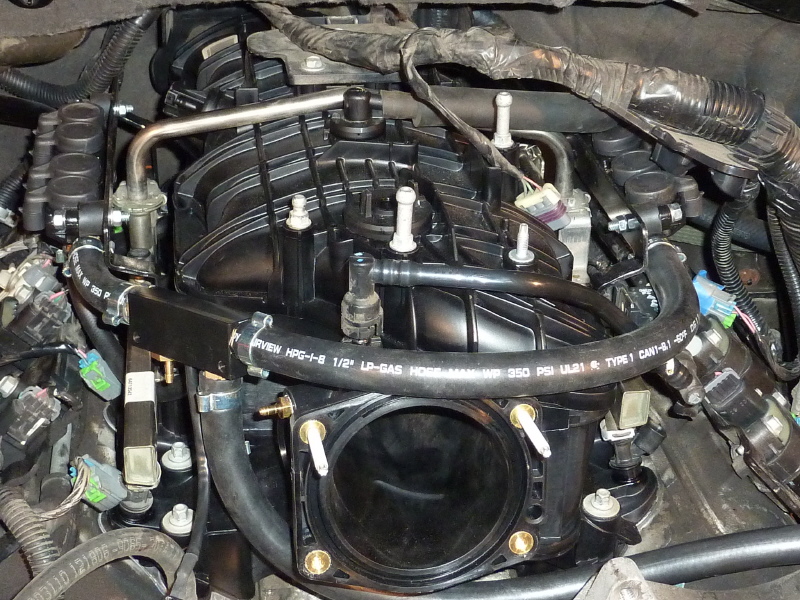

There is a lot of open area around the intake manifold to route the rail injector supply hose. This open area makes the job a snap. Spend a little time pre-fitting the hose and supply tee. Also pay attention to the placement of the Oetiker 2-ear clamps. You need 180° clearance to clamp both sides. |

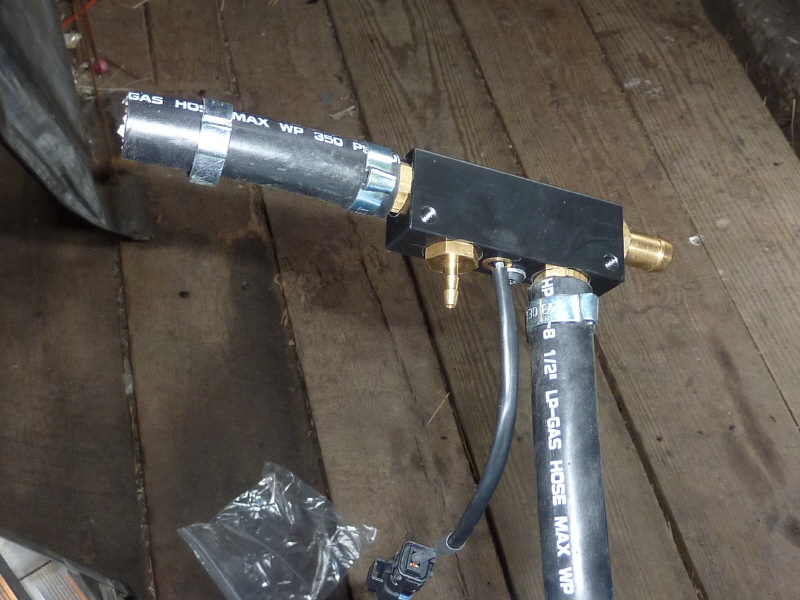

The first thing you want to do is construct a sub-assembly. In the above view clearance problems are eliminated for two Oetiker clamps in the process.
|

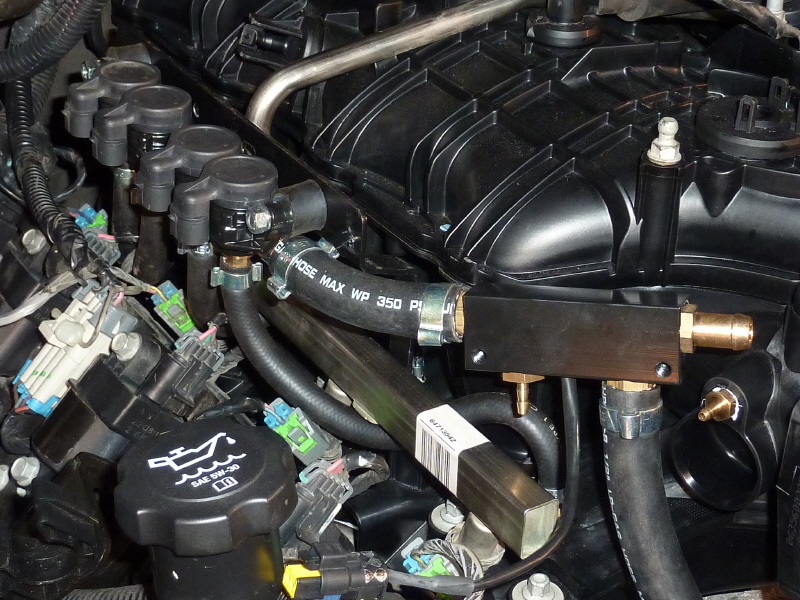

Here the rail injector tee sub-assembly is connected to the left side rail injector. |
The right side rail injector hose is then connected to the tee and clamped.
|

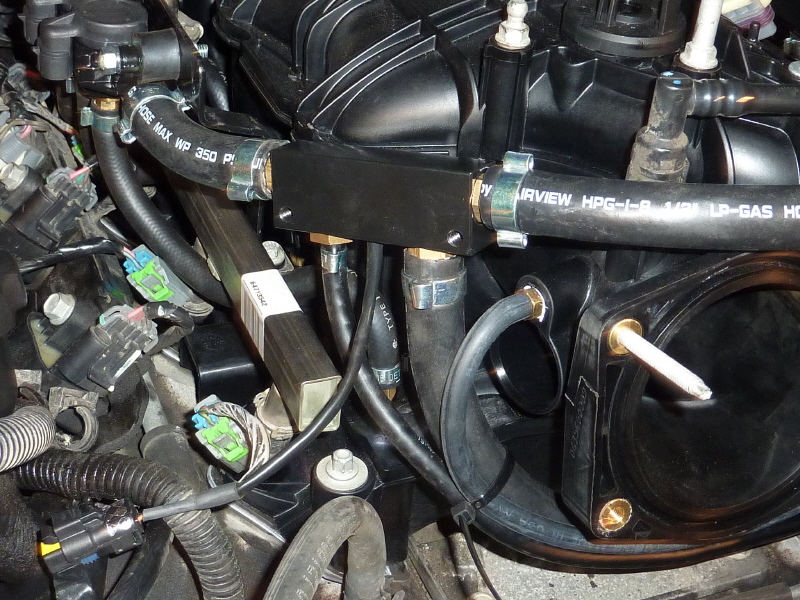

Two additional connections need to be made. The first is a vacuum hose connection to the intake manifold and the second is a pressure connection connected to the rail injector tee.
|

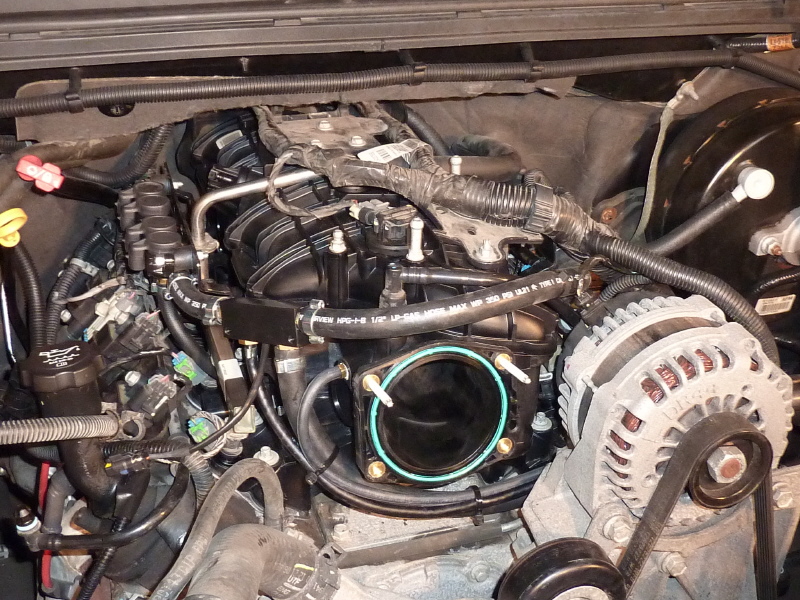

Here the rail injector supply hose, manifold vacuum hose and injector tee pressure hose are zip tied and routed under the intake plenum and alternator. |

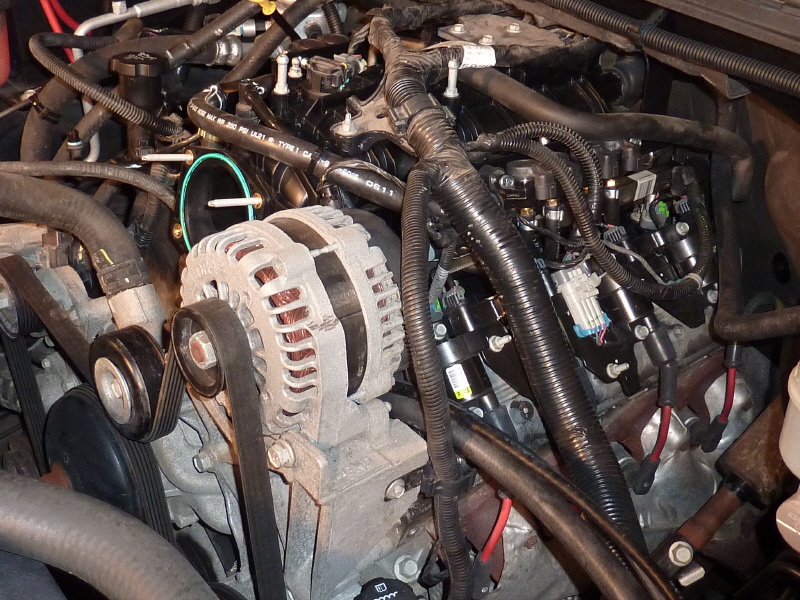

Here the hoses exit from under the alternator and are on there way to the CNG regulator.
|
Make sure you have clearance for the intake manifold cover or "hat" that fits on top of the intake. |
