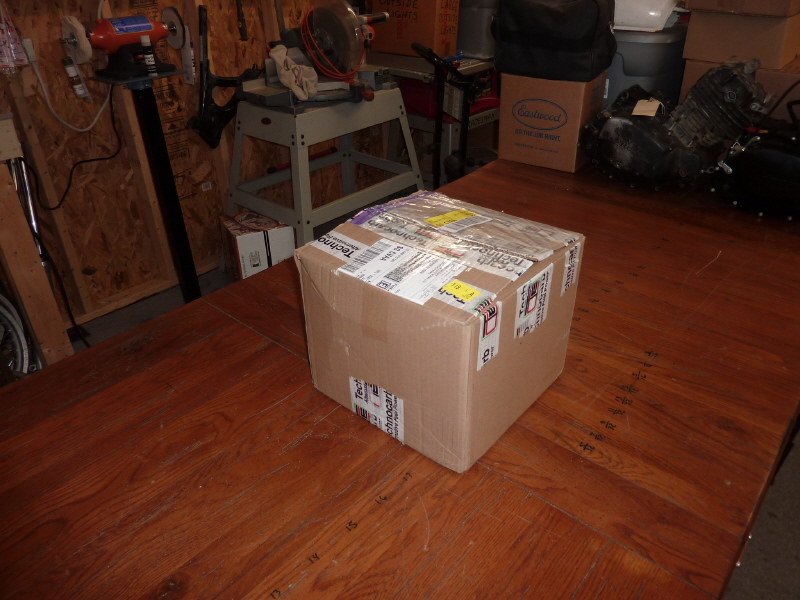

Here is the kit as delivered. I purchased my kit from Ligonier Auto Works LTD, owner Dennis Sweeney. Instead of purchasing a Universal SVIS kit I opted for a vehicle specific kit (KIT-INJ-GM53PU-NGV-2). The vehicle specific kit adds additional cost to the conversion. |

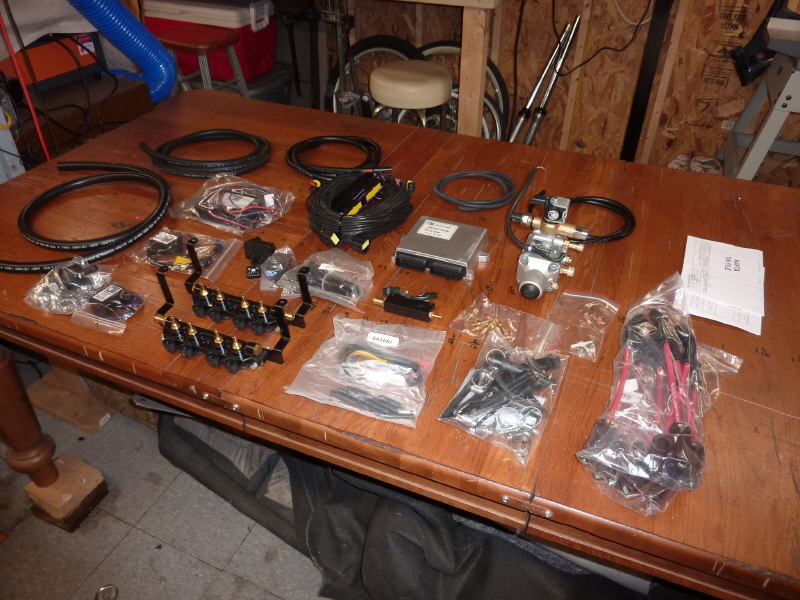

Once the box is opened and the components spread out on the assembly table, it becomes apparent that there are a lot of parts packed in a small box.
|

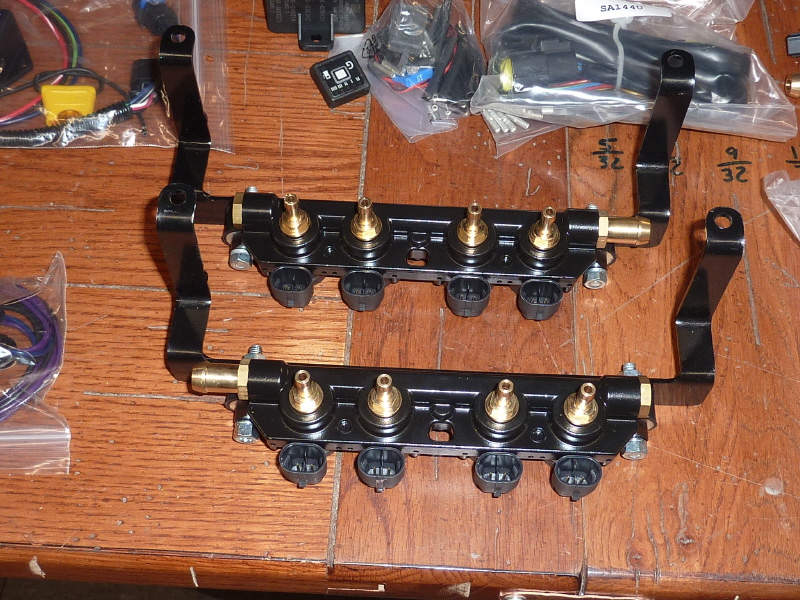

These are the right and left rail injectors. Each has a bracket that allows it to bolt to the existing intake manifold.
|

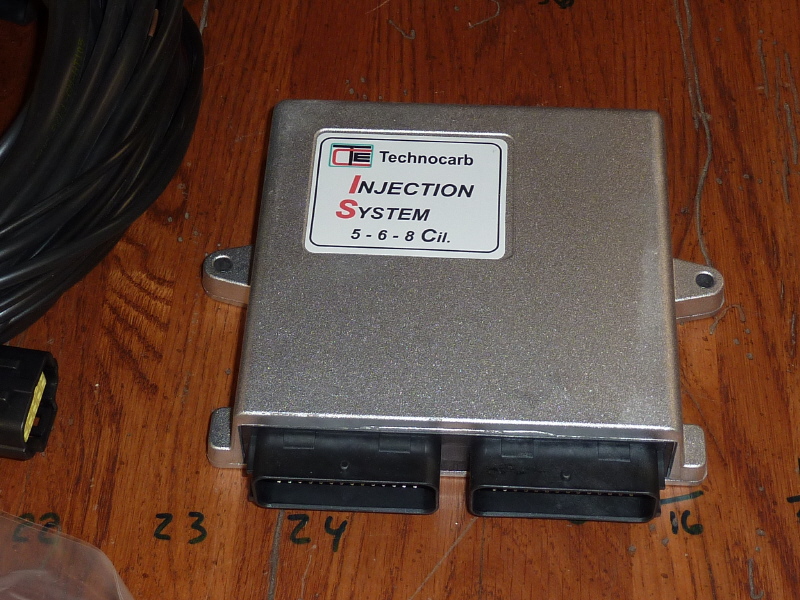

This is the ECM. It is exactly the same unit that came with the Trailblazer conversion kit.
|

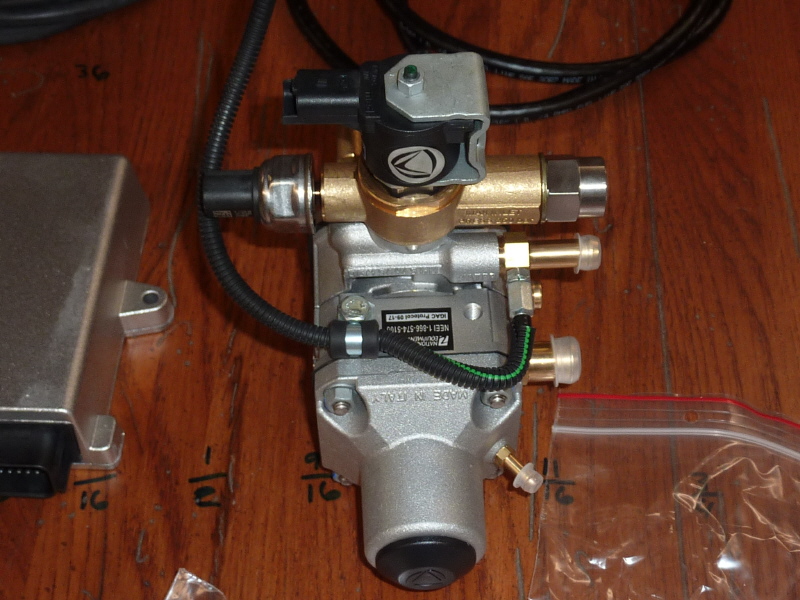

This is the CNG fuel regulator. It is a Landi-Renzo unit. Very similar to the unit that came with the Trailblazer. I have nothing but good things to say about this regulator. It is small and compact making it easy to mount and connect up. If you have ever seen a Galileo CNG regulator, it has to be at least 3 times as big as the Landi-Renzo unit.
|

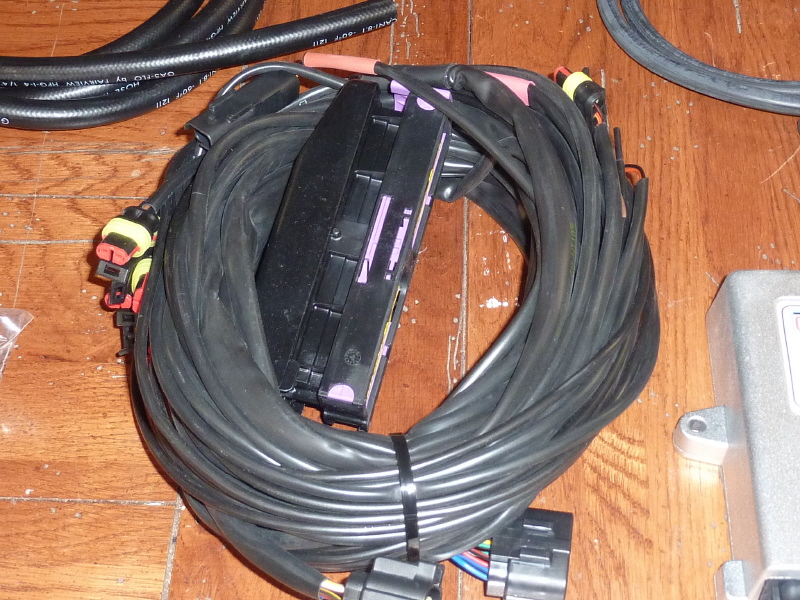

Here is the ECM main wiring harness. Easy to connect and easy to wire up. |

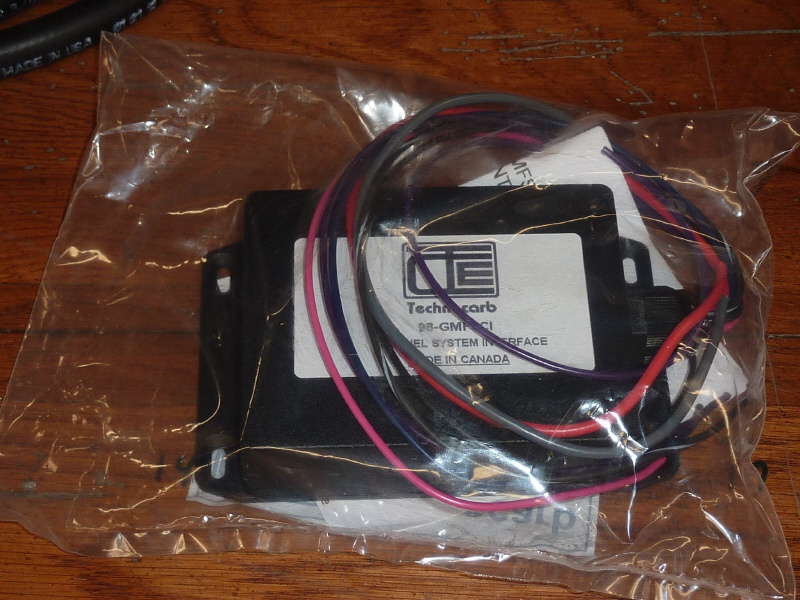

Here is the GM Fuel System Controller Interface or "98-GMFSCI". This device prevents the gasoline fuel rail pressure from exceeding factory limits, while running on CNG.
|

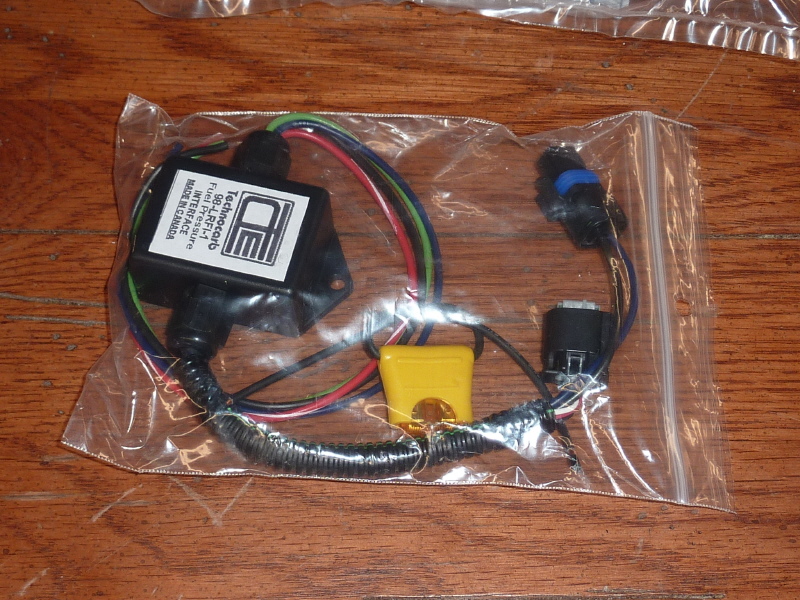

This is the fuel pressure interface module or "98-LRFI-1". This device senses CNG fuel pressure and switches on the solenoid regulator valve. |

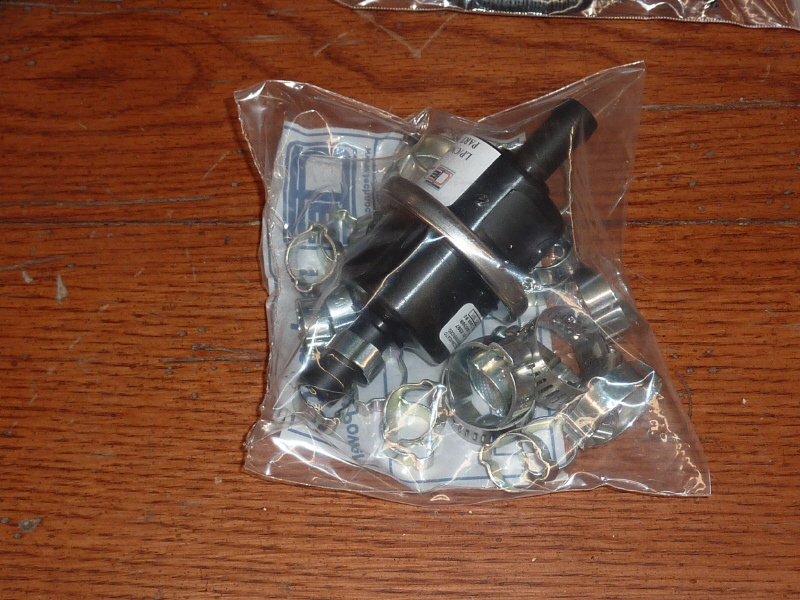

Here is a bag of Oetiker 2-ear clamps and a CNG fuel filter.
|

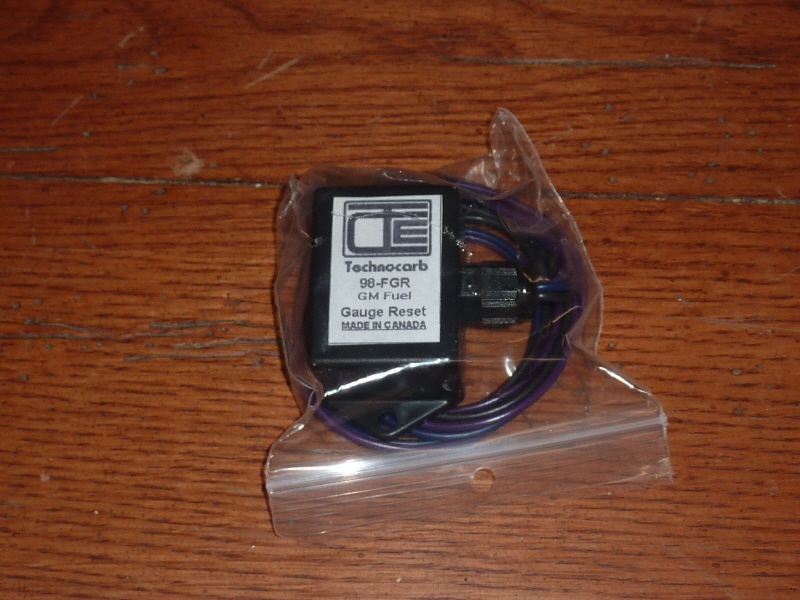

This is the GM Fuel Gauge Reset Module or "98-GMFGRM". This module prevents the gasoline fuel gauge from setting a diagnostic trouble code when running on CNG. |

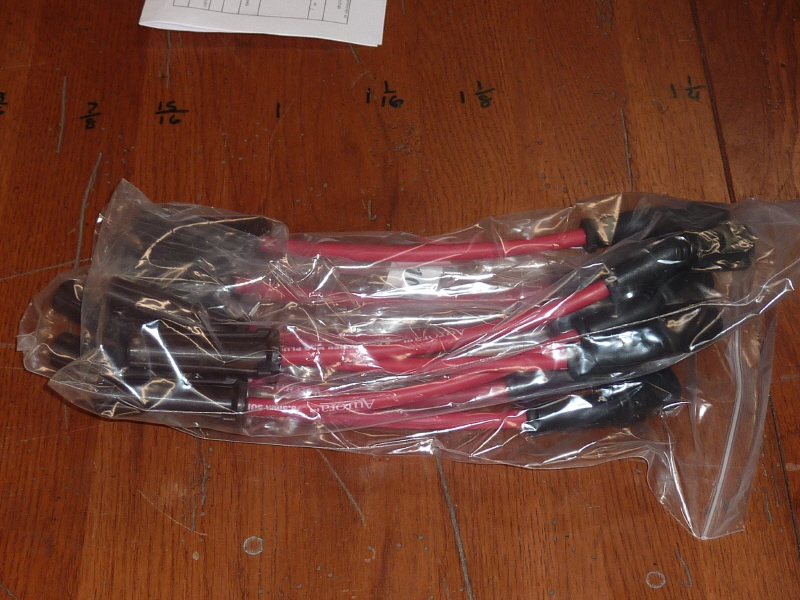

This is a pack of 8.5 mm Aurora high energy spark plug wires. This was an extra cost in case the existing wires can not supply a hot enough spark. The Trailblazer is running fine on stock plugs and wires. I will try the stock route, however these will be in reserve.
|

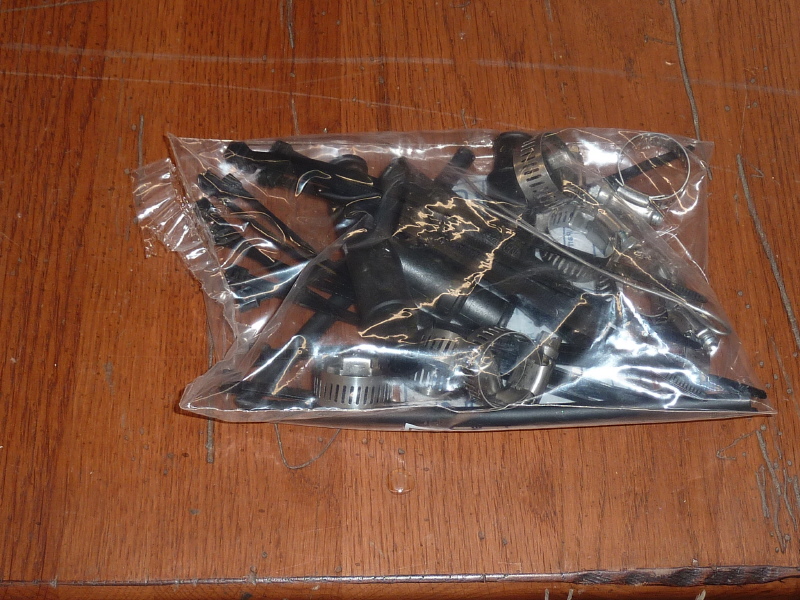

This is a miscellaneous bag of zip ties, gear clamps, shrink tubing and plastic heater line tee's |

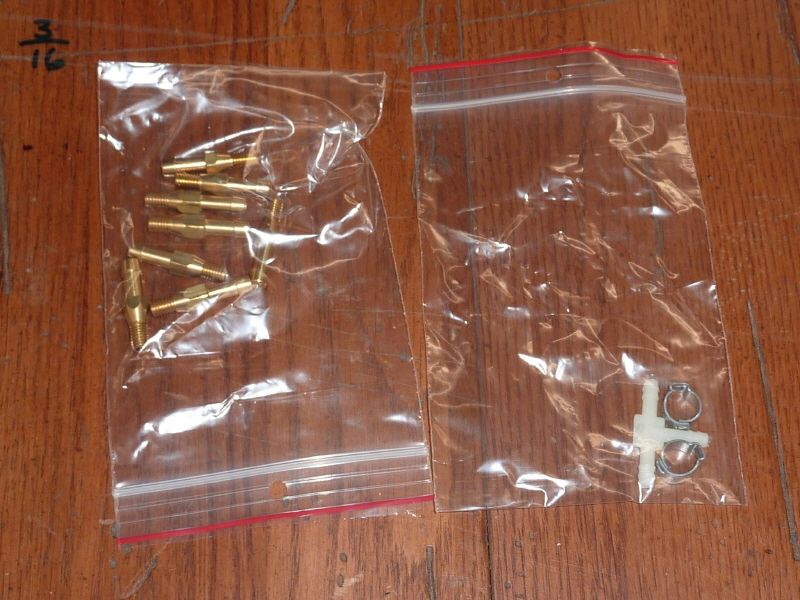

Here is a bag of injector nozzles for the intake manifold and a vacuum tee with clamps. |

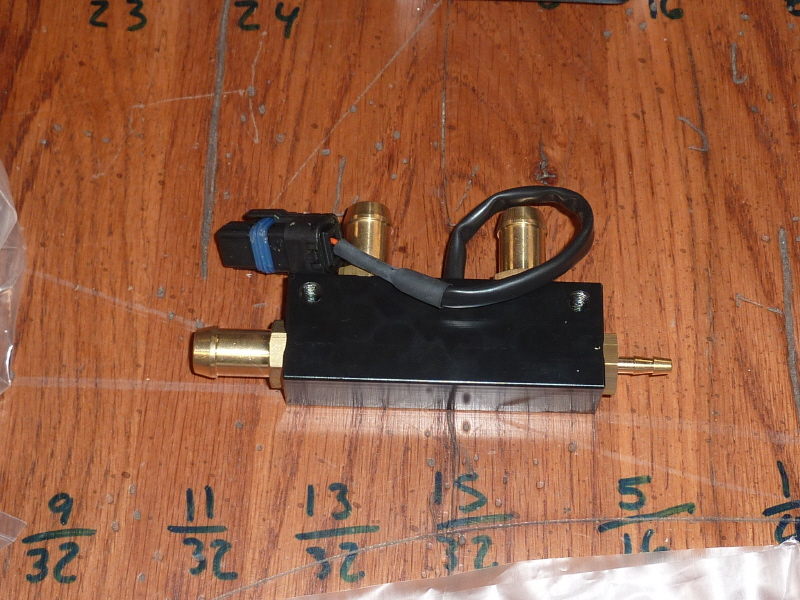

This is the CNG injector rail tee. It splits the gas flow from the regulator to each CNG injector rail. It also contains a pressure port and temperature sensor. |

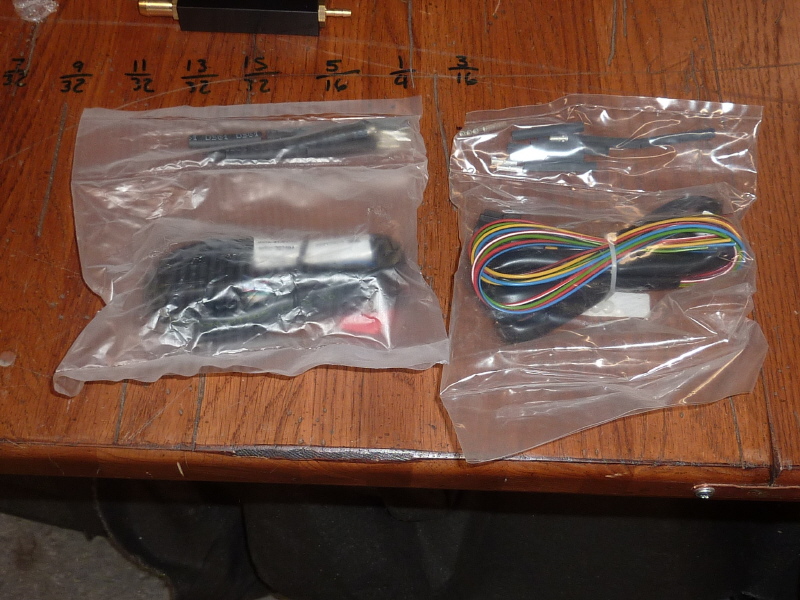

These are harnesses extensions that allow you to splice into the vehicle ECM wiring harness. |

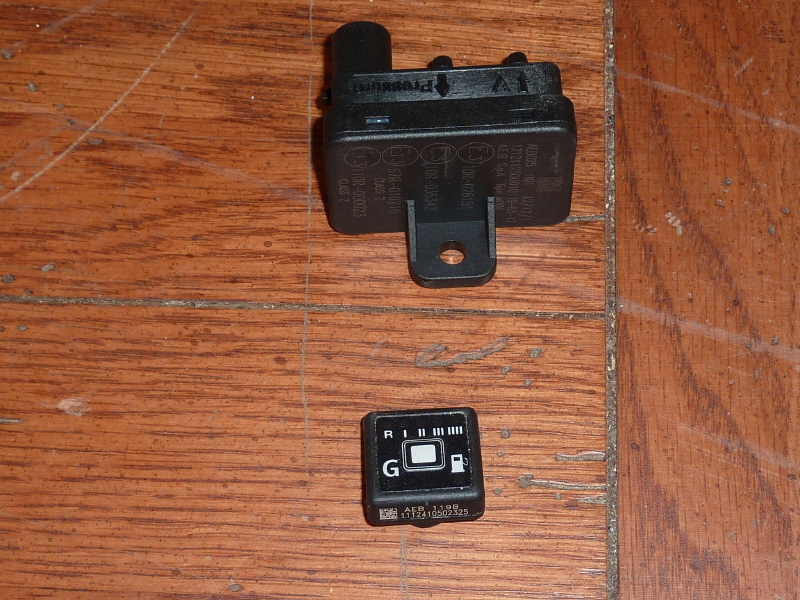

The top unit is the ABE025 MAP sensor and the lower unit is the CNG fuel gauge, plus on/off CNG switch. |

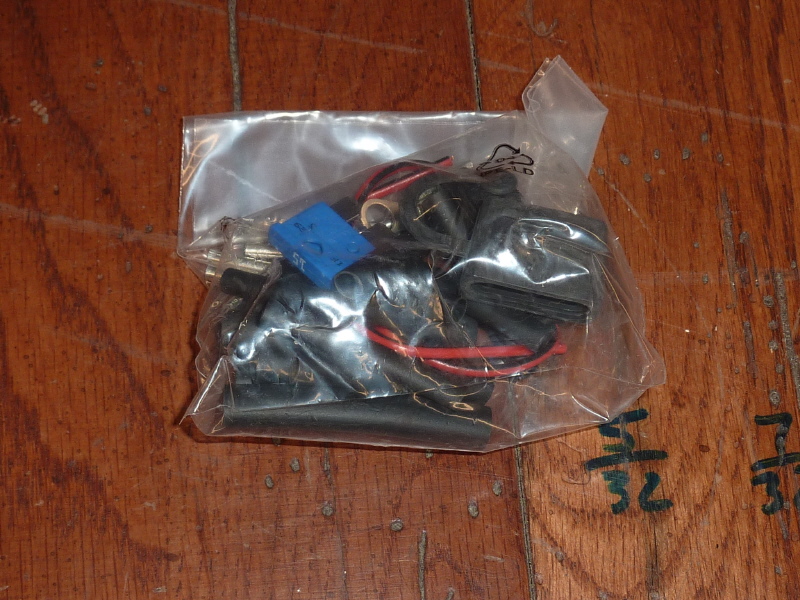

This is a miscellaneous bag of fuses, fuse holder, shrink tubing, metal crimp splices, etc. |

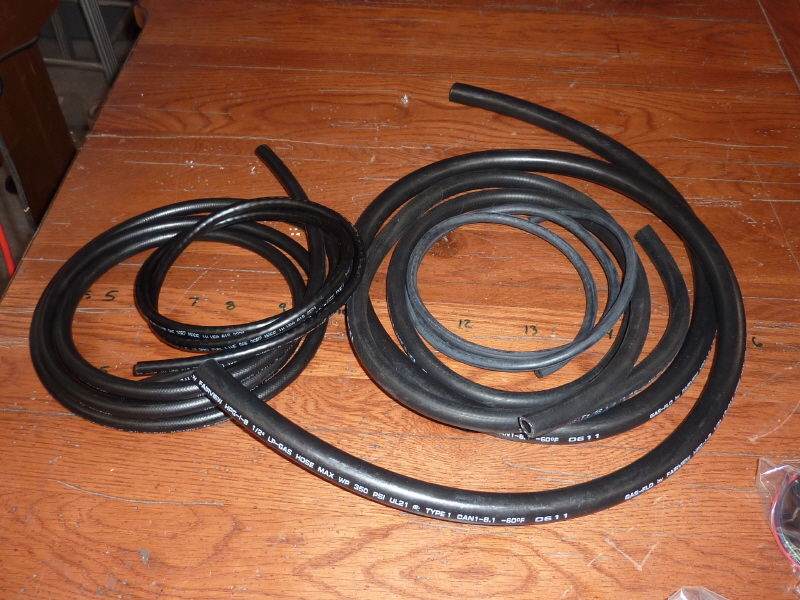

These are miscellaneous hoses. On the Trailblazer conversion all the hoses were short except the injector nozzle and supply hoses. |
